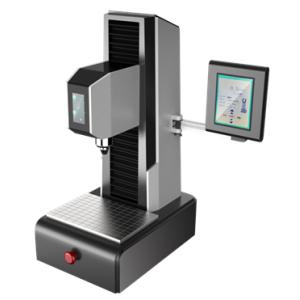

HB-3000AM Single arm Touch Screen Operation Brinell Hardness Tester
Application range:
Suitable for hardness testing of materials such as cast iron, steel, non-ferrous metals, and soft alloys, as well as for hardness testing of certain non-metallic materials.
Wide application range, suitable for precise measurement of parallel planes, and stable and reliable surface measurement.
Technical Specification:
| Model | HB-3000AM |
| Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
| Test Range | 8～650HBW |
| Hardness Reading | LCD Display |
| Hardness Resolution | 0.01HBW |
| Loading method | electronic force application |
| Statistical functions | upper and lower limits, average value, indentation diameter, maximum value, minimum value, number of tests, etc |
| Dwell Time | 0~60s |
| Max. Sample Height | 230mm |
| Throat Depth | 135mm |
| Power Supply | AC220V,50Hz |
| Execute Standard | DIN EN ISO 6506-2,ASTM E10,GB/T231.2 |
Features:
*Force application system: Adopting a fully automatic electronic closed-loop pressure sensor control system, it can easily achieve automated operation of loading, holding, and unloading;
*Product appearance: Professional industrial design, capable of accommodating larger workpieces,;
*Touch screen operation: Easy to operate, directly set the current test scale, holding time, and hardness conversion value parameters, reducing the difficulty of operation for users;
*Measuring head lifting: The measuring head can be automatically raised and lowered with one click, making it convenient and simple for operators to operate during use;
*Hardness conversion function: supports hardness conversion, making it convenient for users to compare and reference between different hardness standards; The latest ISO, ASTM, GB and other standard scales are available for conversion;
*Data processing function: automatic storage of test results and other data, which can be accessed and printed on a computer via Bluetooth connection at any time. *Data statistics can be performed, such as calculating the average, mean square error, maximum and minimum values, for easy uncertainty assessment;
*Instrument configuration: Equipped with a 20x reading microscope as standard, the Brinell automatic indentation measurement system can be optionally selected to achieve efficient and accurate indentation diameter measurement and reading.
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | 20× Digital Measuring Eyepiece | 1 pc |
| Φ2.5mm, Ф5mm, Ф10mm Ball Indenter | each 1 pc | Φ110mm Flat Anvil | 1 pc |
| Φ60mm Flat Anvil | 1 pc | Φ60mm V-shaped Anvil | 1 pc |
| Hardness Block | 2 pc | | 1 pc |
| Fuse 2A | 2 pcs | Power Cable | 1 pc |
| Usage Instruction Manual | 1 pc | Anti-dust Cover | 1 pc |
Brinell Measurement System (optional)
Product Tags:
|
|

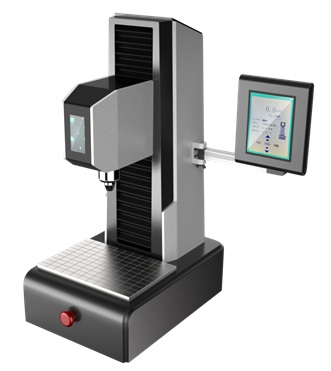

HB-3000AM Single arm Touch Screen Operation Brinell Hardness Tester Images
|
